Write Performance / experimental features

Software-based VM-centric and flash-friendly VM storage + free version

Moderators: anton (staff), art (staff), Max (staff), Anatoly (staff)

Post Reply
xrstokes
Posts: 2
Joined: Tue Apr 17, 2018 12:30 am

Tue Apr 17, 2018 1:45 am

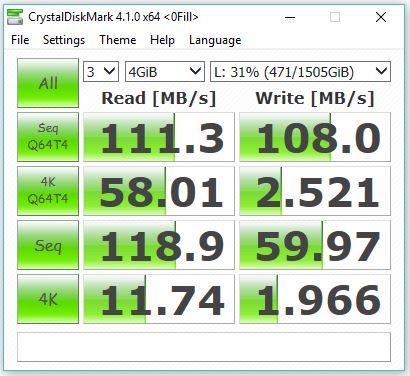

I've come back to starwind after some time with freenas, But this time the write performance is way worse then I remember. See the attached pic.
This is with Write-Back turned on and 6GB of RAM.
It could be because i'm using ReFS this time, that has a cluster size of 64KB where as the underlying storage is 4KB.

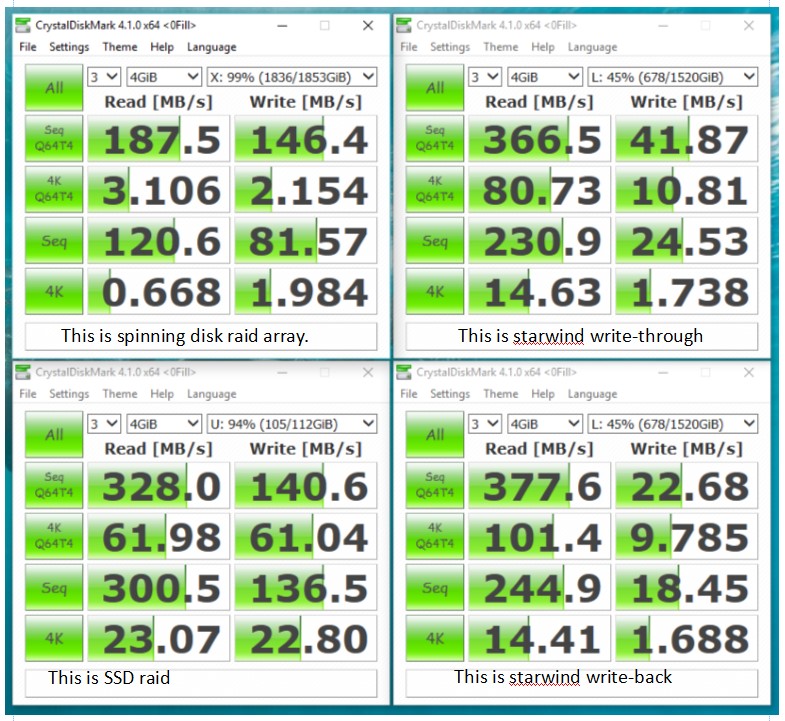

Update, changed it all over to NTFS and now I get this. Now it's like the RAM cache isn't used at all? except for ramdom reads.

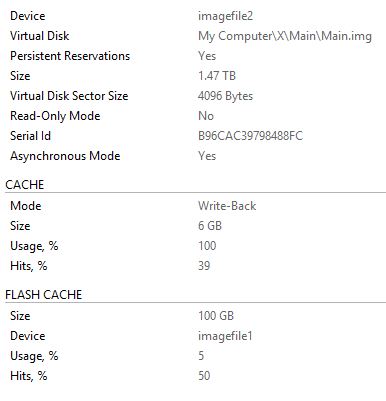

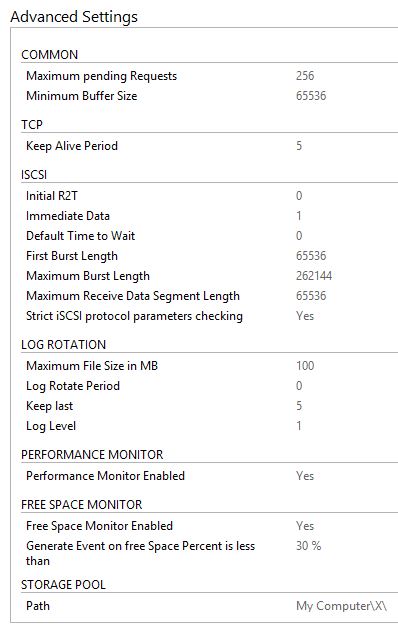

Here are some pics of my settings.
xrstokes
Posts: 2
Joined: Tue Apr 17, 2018 12:30 am

Tue Apr 17, 2018 1:50 am

more pics

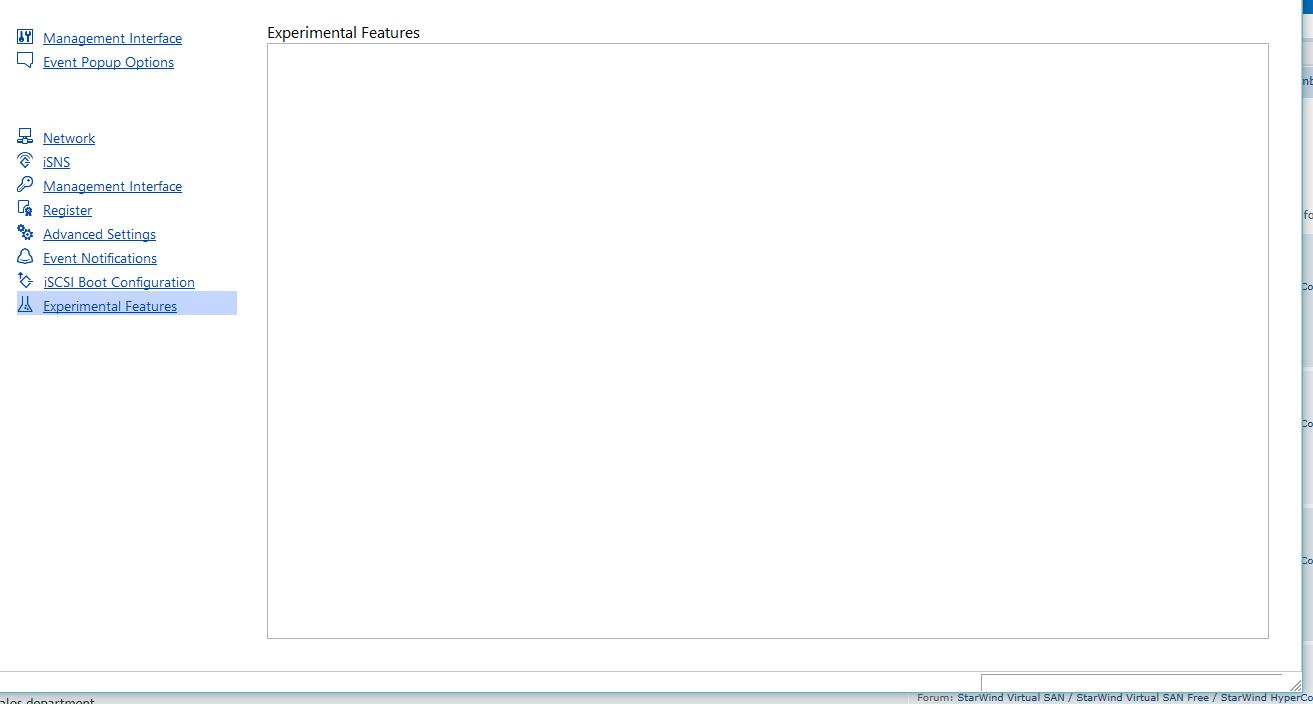

I though about turning L@ write cache, but I don't have the option to enable any experimental features.
At my home I having running most of the time about 5 or 6 different VMs for playing with. Without a decent L1 and L2 cache, the data churn is unbearable.

Any help would be greatly appreciated,
Boris (staff)
Staff
Posts: 805
Joined: Fri Jul 28, 2017 8:18 am

Tue Apr 17, 2018 12:02 pm

Can you share more information on the underlying storage? The main things we need to know whether the settings you have comply with the recommended ones found at https://knowledgebase.starwindsoftware. ... ssd-disks/
Additionally, how is your iSCSI initiator configured? We would need as much information as possible.
Moreover, our Support Team will contact your directly.
