Hello,
i have a new HA cluster with 2 hyper-v hosts with 3 disks
1 whitness 100MB
1 VOL1 1,5TB
1 VOL2 1,5TB
nic's are direct attached as folows
SYNC HOST1 10gbit nic direct attached to 10gbit nic host 2 (no redundancy, yet)
host 1 sync ip 10.0.100.10
host 2 sync ip 10.0.100.20
HB HOST1 10gbit nic direct attached to 10gbit nic host 2 (no redundancy, yet)
host 1 sync ip 10.0.101.10
host 2 sync ip 10.0.101.20
all iscsi targets are HA iscsi attached with 2 MPIO connection (exept for the whitness which is only locally connected). All of the VM's were registered on the host i would NOT reboot.
the problem is when i reboot 1 of the 2 hosts the storage goes completly offline, so there is no failover. i don't know of this is normal. It was also a "clean" reboot so the hosts could have negotiated.

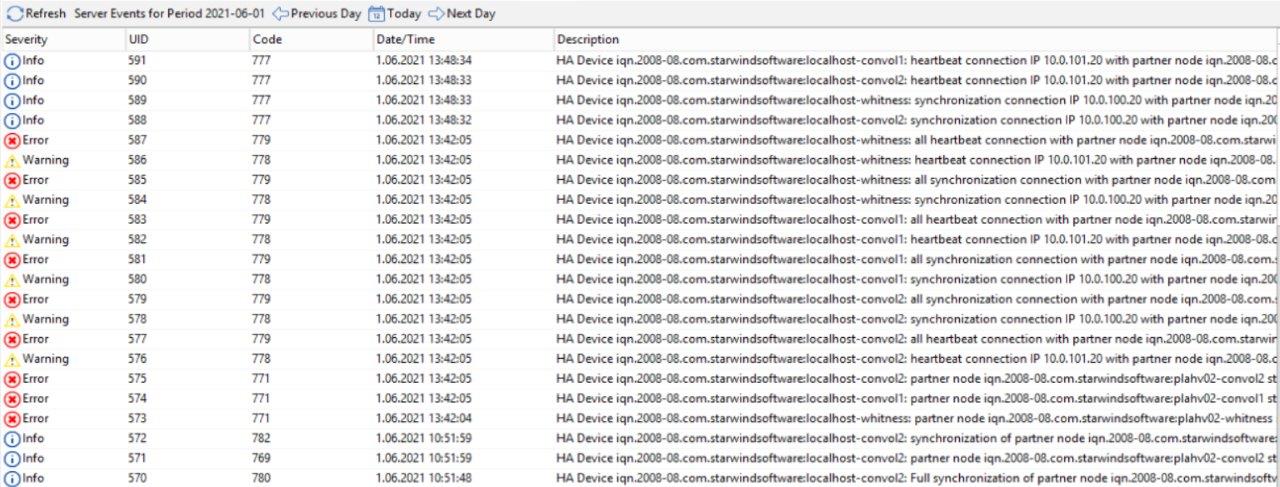

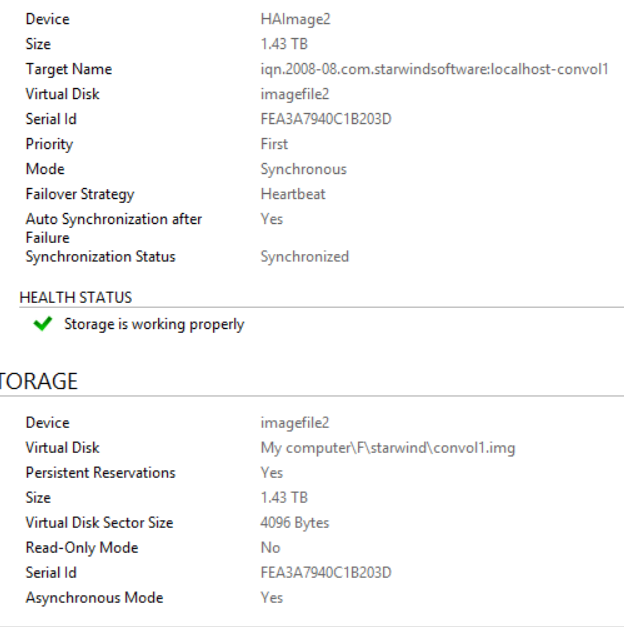

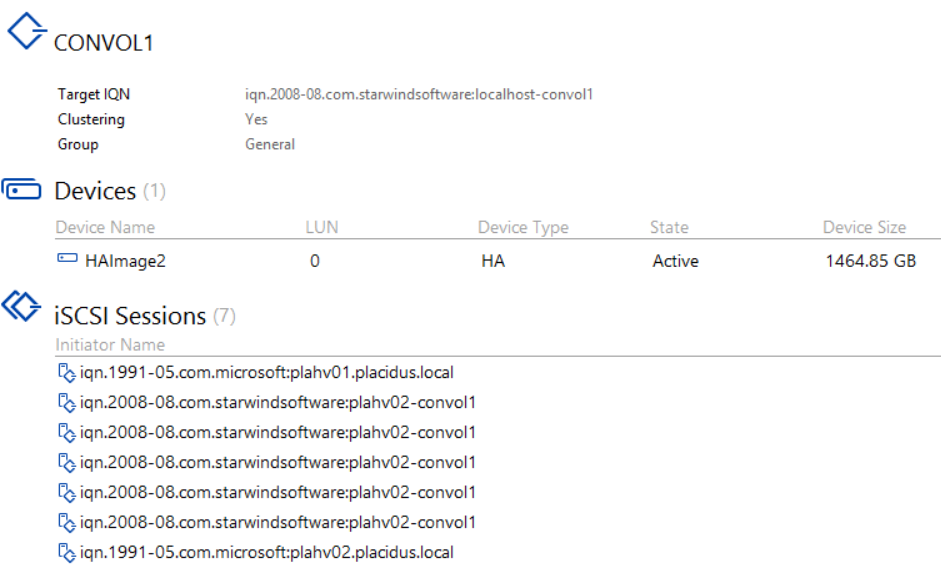

attatches you find a few screenshots of my setup and the events of the host which remained online (so not the host i rebooted) and the storage went offline.
the storage came back up pritty quickly after the reboot, but this is not HA as it should be offcourse.
